Evaporative Cooling Systems
In recent years, there has been a noticeable increase in the average temperature and humidity in the Caribbean Diaspora. Although no scientific evidence has yet been shown, it is the general belief of many that the gradual effects of global warming have been significantly impacting our tropical environment in the West Indies. This has resulted in unusually high temperatures being experienced for extended periods during the day as well as during the night.
There is empirical evidence that more automobiles, offices and homes have had to resort to using more costly or less efficient cooling methods such as air-conditioning, fans, and roof deck open plans to gain some measure of comfort and relief from temperatures that remain around 93+ degrees Fahrenheit during the day. There is a new way to cool large buildings such as Churches, Offices, Show Rooms, Warehouses and Data Centres, Server and IT Equipment rooms without the costs of operating expensive centralized air conditioners or split systems!

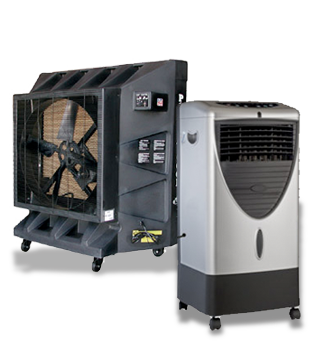

Portable Commercial Evaporative Coolers
Portable Evaporative Cooling systems, for example our Port-A- Cool, Kuulaire and Honeywell units are ideal for cooling ventilated areas such bed rooms, dining and living rooms places where portable air conditioning units just won’t work or are cost prohibitive such outdoor events under tents or on patios. These Cooling Units do not require installation, vents or drains. They operate at 90% less than the daily running cost of traditional air conditioners, are totally portable and produce enough cool dry air to drop the temperature an average of 18 degrees, even with the doors and windows open. Our units offer greater flexibility in positioning.
Where adequate ventilation is in place this is an extremely low cost installation without sacrificing any floor space. Units are available for home, office and outdoor activities for sale or rental.

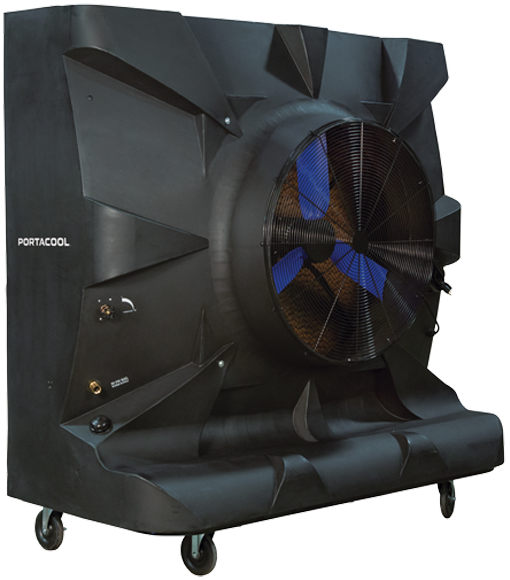

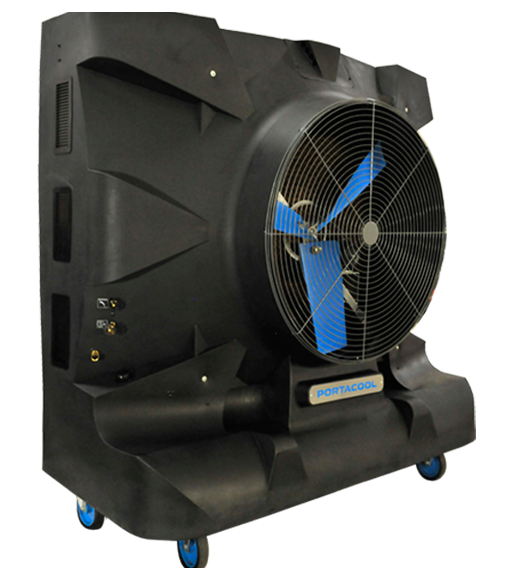

Hurricane Series
Jetstream Series

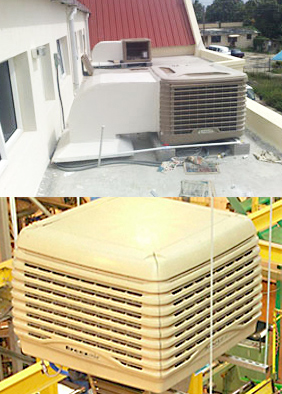

Commerical EcoCooling Installations
For example, our EcoCooling coolers can be installed on the roof or the outside of the building and air can be duct through the conventional centralize air conditioner ducting system: In addition there are the added benefits to consider:
- A cost-effective way to provide centralized air into a new or existing building with ducts.
- Cost 20% less of the installation of air conditioning
- Operates at 10% of the running cost of air conditioning
- Has low maintenance requirements
- Provides 5, 000 sq. ft. of cooled filtered fresh air
- Is a single self-contained unit typically covers a 50ft diameter work space or a 100ft corridor
- 35KW cooling unit costs less than 18 US cents per hour to run
Product detail view
Home Cooling Products Honeywell – CL25AE
Overview
- Powerful air flow
- Water tank capacity
- Top loading ice compartment
- Low water alarm
- Oscillating louvers evenly distribute cool air
- Works on inverter
- Air throw at body level
- Easy Mobility
Spec
- 850m 3 /hr (500 CFM)
- 25 Litres (6.6 Gallons)
- 0.5 to 7.5 hours OFF timer
- 4 speeds – Low/ Medium/ High/ Sleep
Product detail view

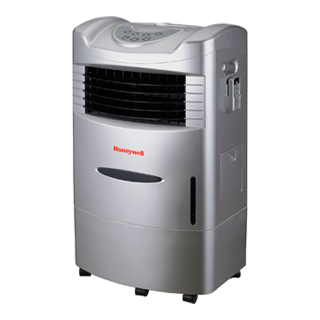

Home Cooling Products Honeywell – CL201AE
Overview
- Powerful air flow
- Top loading ice compartment
- Oscillating louvers evenly distribute cool air
- Honeycomb cooling media and carbon-dust filter
- Remote control, relax and enjoy the cooling breeze at the touch of a button
Spec
- 799m 3 /hr (470 CFM)
- 20 Litres (5.3 Gallons)
- 0.5 to 8 hours OFF timer
- Works on inverter
- Easy mobility
- 5 speeds – Low/ Medium/ High/ Natural/ Sleep
Product detail view

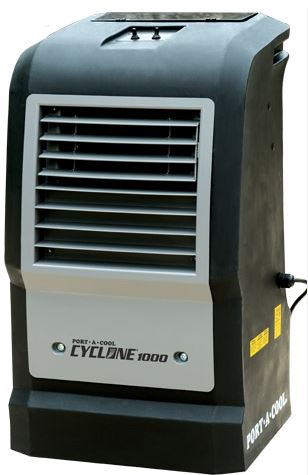

Home Cooling Products – Port-A-Cool Cyclone 1000
Overview
- ADJUSTABLE LOUVERS AND CENTRIFUGAL AIR DELIVERY – NO FAN BLADES!
- recessed casters
- adjustable louvers
- superior microflute Kuul technology
- Model Number PACCYC05
Spec
- Air Delivery 1, 000 CFM / 1, 700 m?/hr
- Cooling Capacity 300 s.f. / 28 m?
- Water Reservoir 8 gallons / 30 liters
- Unit Weight 50 lbs / 23 kg
- Unit Dimensions 35 H x 19.5 W x 20 D (in)
- 89 H x 50 W x 50 D (cm)
Product detail view

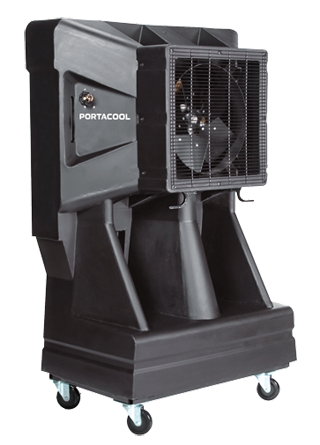

Industrial / Commercial Cooling Products – Port-A-Cool 16″
Spec
- Air Delivery CFM 2, 500/3, 300/3, 900
- Total Amps 5.1 amp
- Dimensions 59 inch h x 37.5 inch w x 23 inch d
- Cooling Capacity 900 sq. ft.
- Water Capacity 42 gallons
Product detail view

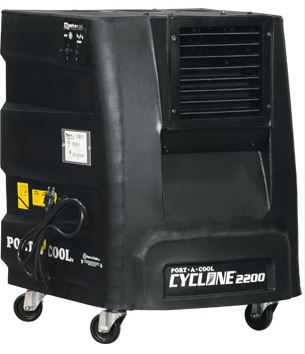

Home Cooling Products – Port-A-Cool Cyclone 2200
Overview
- perfect for cooling areas up to 500 s.f.
- tap water and 115 volt
- Fill continuously with a water hose and use the water adjustment valve to adjust for humidity.
- Model Number PACCYC03
Spec
- Air Delivery 1, 700 / 2, 200 CFM
- Cooling Capacity 500 s.f.
- Water Reservoir 10 gallons
- Unit Weight 61 lbs.
- Unit Dimensions 31 inches H x 25 inches wide x 27 inches depth
Product detail view

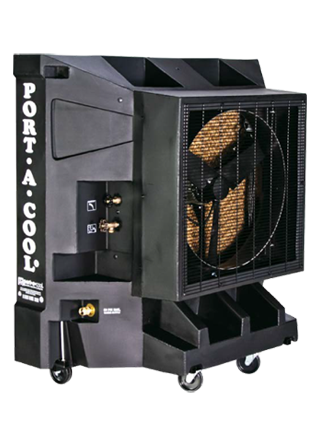

Industrial / Commercial Cooling Products – Port-A-Cool 24″
Spec
- Air Delivery CFM 6, 700
- Total Amps 8.8 amp
- Dimensions 53 inch h x 50 inch w x 25 inch d
- Water Capacity 14 gallons
- Cooling Capacity 1, 800 sq. ft.
Product detail view

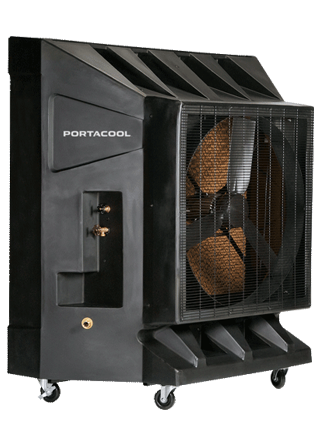

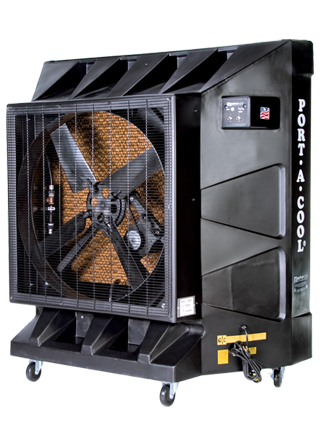

Industrial / Commercial Cooling Products – Port-A-Cool 36″
Spec
- Air Delivery CFM 10, 100
- Total Amps 11.0 amp
- Dimensions 67 inch h x 62 inch w x 32 inch d
- Water Capacity 32 gallons
- Cooling Capacity 2, 650 sq. ft.
Product detail view

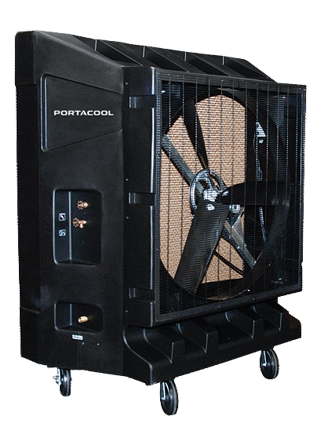

Industrial / Commercial Cooling Products – Port-A-Cool 48″
Spec
- Air Delivery CFM 11, 000 / 20, 000
- Total Amps 13.7 amp
- Dimensions 86 inch h x 74 inch w x 36 inch d
- Cooling Capacity 4, 000 sq. ft.
Product detail view

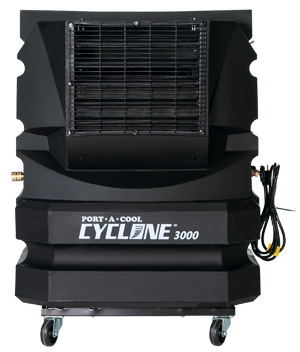

Industrial / Commercial Cooling Products – Port-A-Cool Cyclone
Spec
- Air Delivery CFM 3, 000
- Total Amps 5.6 amp
- Dimensions 29 inch W x 25 inch D x 38 inch H
- Water Capacity 16 gallons
- Cooling Capacity 700 sq. ft.
Product detail view
EcoCooling
The EcoCooling range of evaporative coolers, ECP Down, Top and Side discharge units, offer a completely natural way of producing refreshing cool air. Our Evaporative cooling units have been specifically designed for the cooling of industrial and commercial buildings and can give an amazing 35KW of air cooling for every 1.5KW of electricity consumed. Take a look at our Evaporative Cooling Performance charts to see just how cool Evaporative Cooling can be. As an example the cost of cooling a typical data centre can be reduced by over 90% using Evaporative Cooling.
The EcoCooling range is the only evaporative cooler designed specifically to take into account European health and safety regulations.
Evaporative heat exchanging takes advantage of the principles of latent heat of evaporation where tremendous heat is exchanged when water evaporates. It makes use of the free latent energy in the atmosphere. Compared to air-conditioning which uses mechanical refrigeration, evaporative heat exchanging operating cost are 90%
LESS than air-conditioning.
EcoCooling Evaporative cooling allows cool fresh air to circulate throughout a building forcing the stale hot air to be displaced out. Unlike air- conditioning which operates with re-circulated air, evaporative coolers operate on the principle of air change and work as part of balanced ventilation system.
Additional Benefits
A Reduction in temperature in the work place creates the obvious benefits of improved staff morale, increased productivity and a reduction in absenteeism: evaporative cooling can provide additional benefits
- An Environmentally safe solution – evaporation is a natural process and requires no refrigerants.
- Eliminates odours and stale air instead of re-circulating them.
- Money saving – running costs up to 90% less than an equivalent refrigeration system
- doors and windows can remain open with no detremental effect on the efficiency or operating cost.
- Saves up to 10, 000kg of carbon per year compared to an equivalent air conditioning system
- Provides a natural environment and improves air quality
Temperature drops of 5 to 15 degrees can be regularly achieved with the air off temperature in the Caribbean . EcoCooling systems can provide and maintain a natural environment purging odours and hot stale air and ventilating with cool fresh filtered air by means of a sophisticated control process which can be linked if required to existing BMS systems.
Global warming and carbon reduction is now a global issue – at EcoCooling we have taken this on board and are working with the carbon trust and other professional institutions to develop our product to maximise carbon savings. On the other side we recognise that our customers are understandably worried about the costs incurred to “go green” and we are continuing to update our technology to provide innovative products which can be installed and maintained for a fraction of the price of traditional refrigeration systems whilst still providing a cool refreshing environment.
EcoCooling take health and safety of our products very seriously and for this reason the best health and safety practices have been incorporated into the EcoCooler design. From electrical and guarding standards through to Legionnaires disease control. An independent risk assessment, produced by an industry expert, is available which explains how an EcoCooler provides low risk operation.
Product detail view

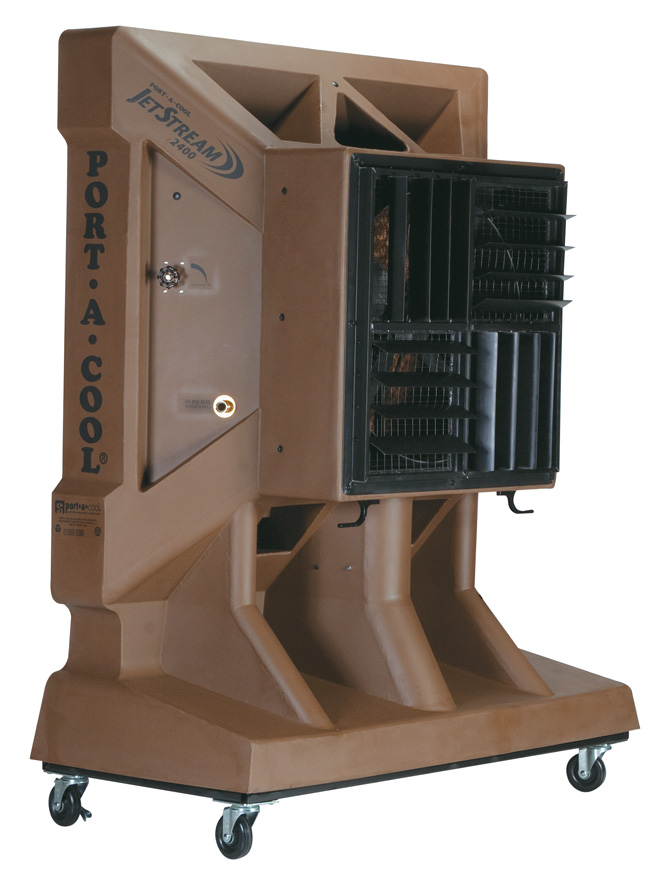

Industrial / Commercial Cooling Products – Jetstream
Spec
- Air Delivery CFM 7, 500
- Total Amps 9.2 amp
- Dimensions 72 inch h x 54.5 inch w x 28 inch d
- Water Capacity 48 gallons
- Cooling Capacity 2, 000 sq. ft.
